Hydraulic Modular Trailer

Short Description:

Hydraulic Modular Trailer is used to transport construction machinery, large equipment, large and heavy objects, bridges, tunnel engineering, power engineering, petrochemical and railway construction, in addition to mining machinery, excavators, bulldozers, cranes, etc. The load capacity of the trailer is very large and can be designed to be 100 tons, 200 tons, 300 tons. If transporting thousands of tons of equipment, several Hydraulic Modular Trailers can be spliced together. In addition, the carrying surface of the trailer can be extended in length and width.

Price Range:USD 30,000-60,000

Model: Hydraulic Modular Trailer

Delivery date:30-50 days

Brand:EAST

Send email to us

Product Detail

Product Tags

Product Introduction

Our factory has been producing trailers for 21 years and can customize different kinds of trailers for customers. Especially Hydraulic Modular Trailer, its technical content is very high, and the general trailer manufacturers cannot complete it. Our experienced engineers have produced trailers that are sold to Southeast Asia, Africa, and Latin America, and are favored by many customers.

The trailer can be split, spliced, and the length of the carrying surface can be extended, and the width of the carrying surface can be extended. As long as the customer's needs do not affect the normal work and safe driving of the trailer, all requirements will be satisfied.

I hope that customers can fully communicate with us, from the size of the trailer to each component. Only with more communication can we produce the most suitable trailer for your use.

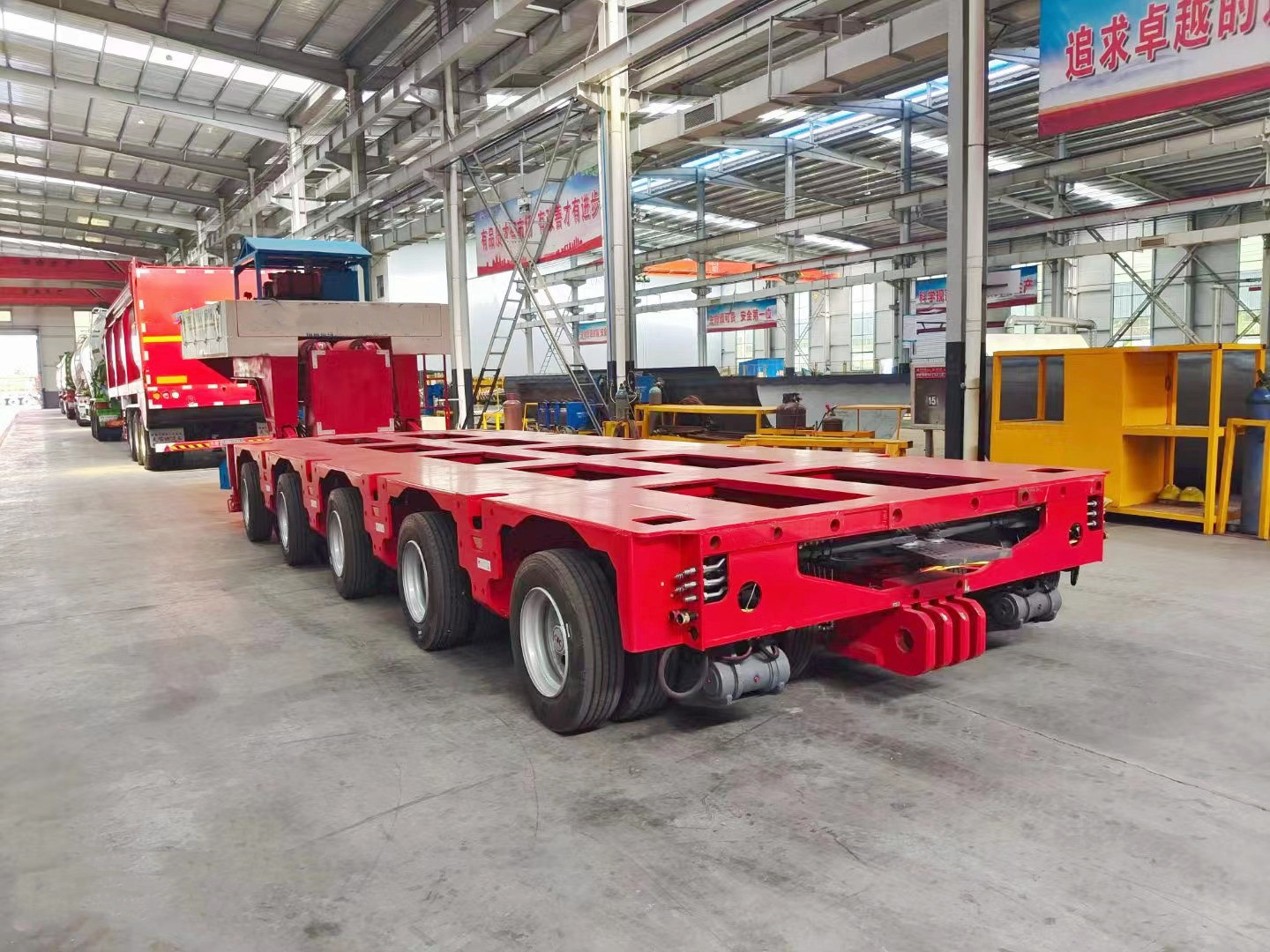

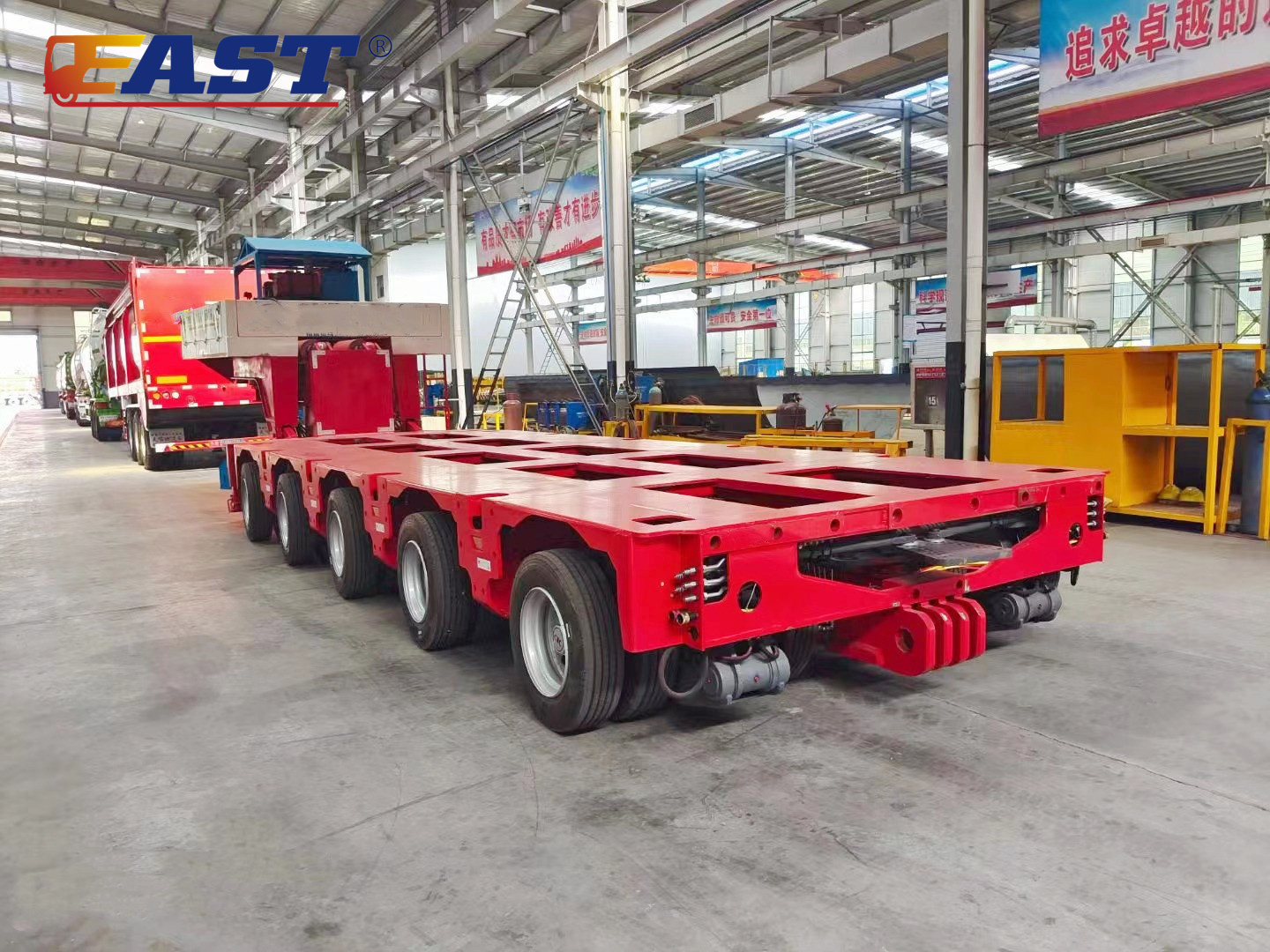

5 axes Modular Trailer

The 5 axes Modular Trailer has a load capacity of 100 tons, and the main beam is made of Q560 high-strength structural steel. The yield strength of Q560 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its carrying capacity is 5 times that of a Q345 steel trailer. The trailer adopts double-layer reinforced gooseneck and upper and lower plates. The height of the trailer's bearing surface can be adjusted. All wheels can be steered by remote control or manual steering. The lifting function of the trailer can automatically respond to various harsh road conditions.

Advantages and Details

The height of the bearing surface can be adjusted to adapt to the transportation of different types of equipment.
Very small turning radius, can be equipped with hydraulic gooseneck.
The steel is sturdy and strong, and has a strong bearing capacity.
All wheels can be steered remotely or manually.
Lifting cylinders allow the trailer to automatically handle rough road conditions.
The entire trailer chassis is sandblasted and rust-proofed, with three coats of paint, one layer of anti-rust paint, and two layers of final paint. Before shipment, it is sprayed with wax.
Chinese famous brand diesel engine, strong power, not easy to damage, saving resources.
Hydraulic climbing ladder can be installed. Hydraulic foldable climbing ladder is welded by four-in-one high-strength plate, which is more firm, does not deform, and is more convenient to operate with remote control.
The trailer can choose the pull-out design to transport longer goods. The pull-out structure adopts the double-layer box sleeve type pull-out, which is better to use, has a stronger bearing capacity, and does not deform when turning.
Two control boxes, one at the front and one at the back, can ensure the stability of various functions of the trailer.
Widening designs can be selected, many widening methods, and wider machinery and equipment can be transported.
